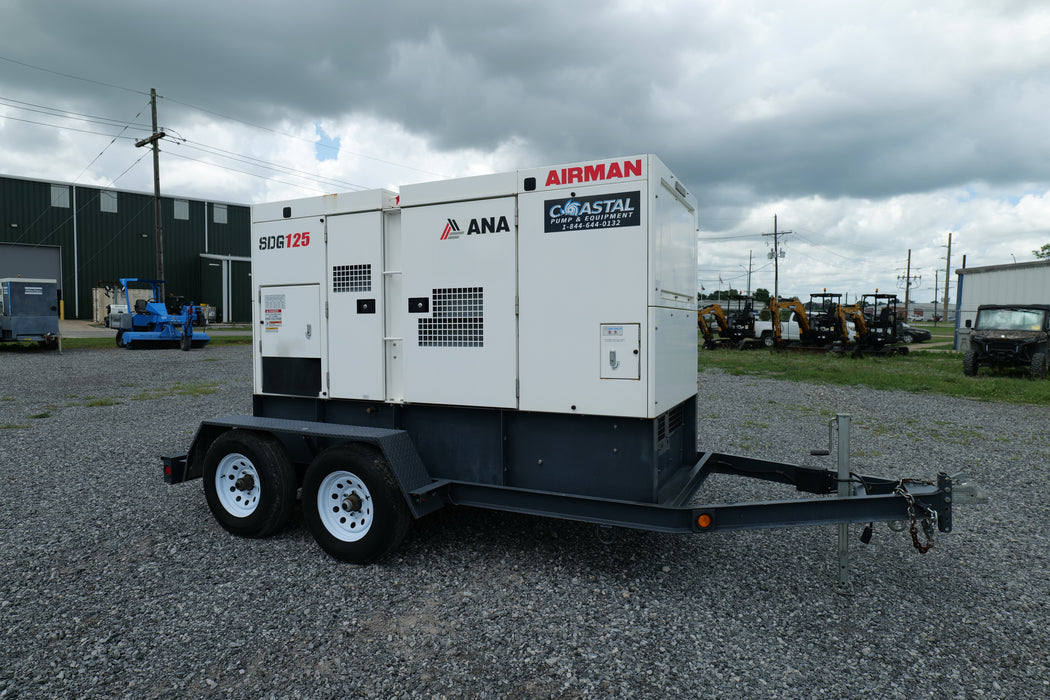

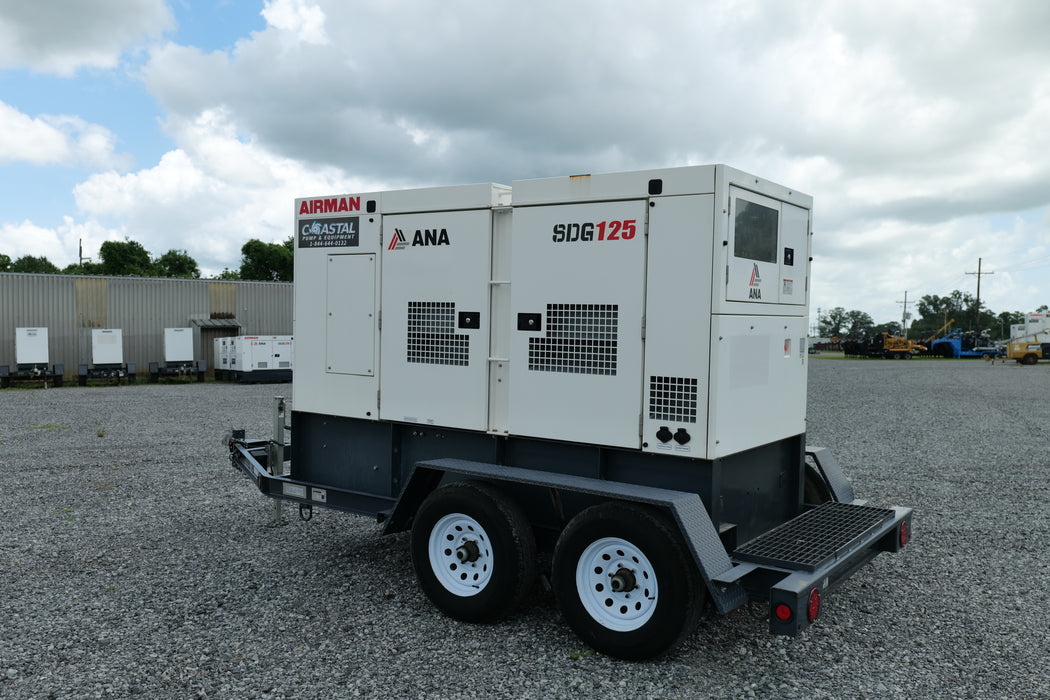

125 KVA DIESEL GENERATOR
Original price
$10,000.00
-
Original price
$10,000.00
Original price
$10,000.00
$10,000.00
-
$10,000.00
Current price
$10,000.00
Daily Rate: $325
Weekly Rate: $975
Monthly Rate: $2,925
- FREQUENCY 60 Hz
- PRIME POWER RATING 3Ø 100 kW/125 kVA
- STANDBY POWER RATING 3Ø 102 kW/127 kVA
- 3Ø POWER FACTOR 0.8
- 3Ø VOLTAGE IN 480V SWITCH POSITION (SERUES STAR W/ NEUTRAL) 480Y/277 VOLTS
- AMP CAPACITY @ 480V 150 AMPS
- 3Ø VOLTAGE IN 240-208V SWITCH POSITION (PARALLEL STAR W/ NEUTRAL) 240YY / 139-208YY VOLTS
- AMP CAPACITY @ 240V 300 AMPS
- AMP CAPACITY @ 208V 300 AMPS
- PRIME POWER RATING 1Ø 65 kW/ 65kVA
- 1Ø POWER FACTOR 1
- 1Ø VOLTAGE IN 120-240V SWITCH POSITION (ZIG-ZAG) 240 / 120 VOLTS
- AMP CAPACITY @ 240V 270 AMPS
- AMP CAPACITY @ 120V 270 x 2 AMPS
- MAIN BREAKER – SHUNT TRIP 400 AMPS
- POWER DISTRIBUTION – TERMINAL BOARD 5 WIRE (L1,L2,L3,N,GROUND)
- TERMINAL BOARD CONNECTIONS BARE WIRE TERMINALS
- MAXIMUM TERMINAL CABLE SIZE 350 MCM
- CONVENIENCE RECEPTACLES 2 x NEMA 5-20R & 3 x 125/250V 50A CS6364
- MAX. SOUND PRESSURE LEVEL (LPA) @ 23′ @ 75% LOAD 73 dB(A)
- ENGINE HP 172 HP
- FUEL TANK CAPACITY 166 gal
- FUEL CONSUMPTION ≈ 7.06 gal/h
